TWISTECH V2

• Bracket + Small Twistech → Twistech Complet PETIT (Étrier + Twistech Petit)
• Bracket + Medium Twistech → Twistech Complet MOYEN (Étrier + Twistech Moyen)
• Bracket + Small + Medium Twistech → All setups

The TWISTECH V2 is the evolution users have been waiting for.

The TWISTECH brand is officially registered in Europe by Bricoleurre, and this new version introduces a major improvement:
one single support frame (bracket) compatible with two working sizes — small and medium.

This means:

• More versatility
• Lower cost
• Less equipment needed

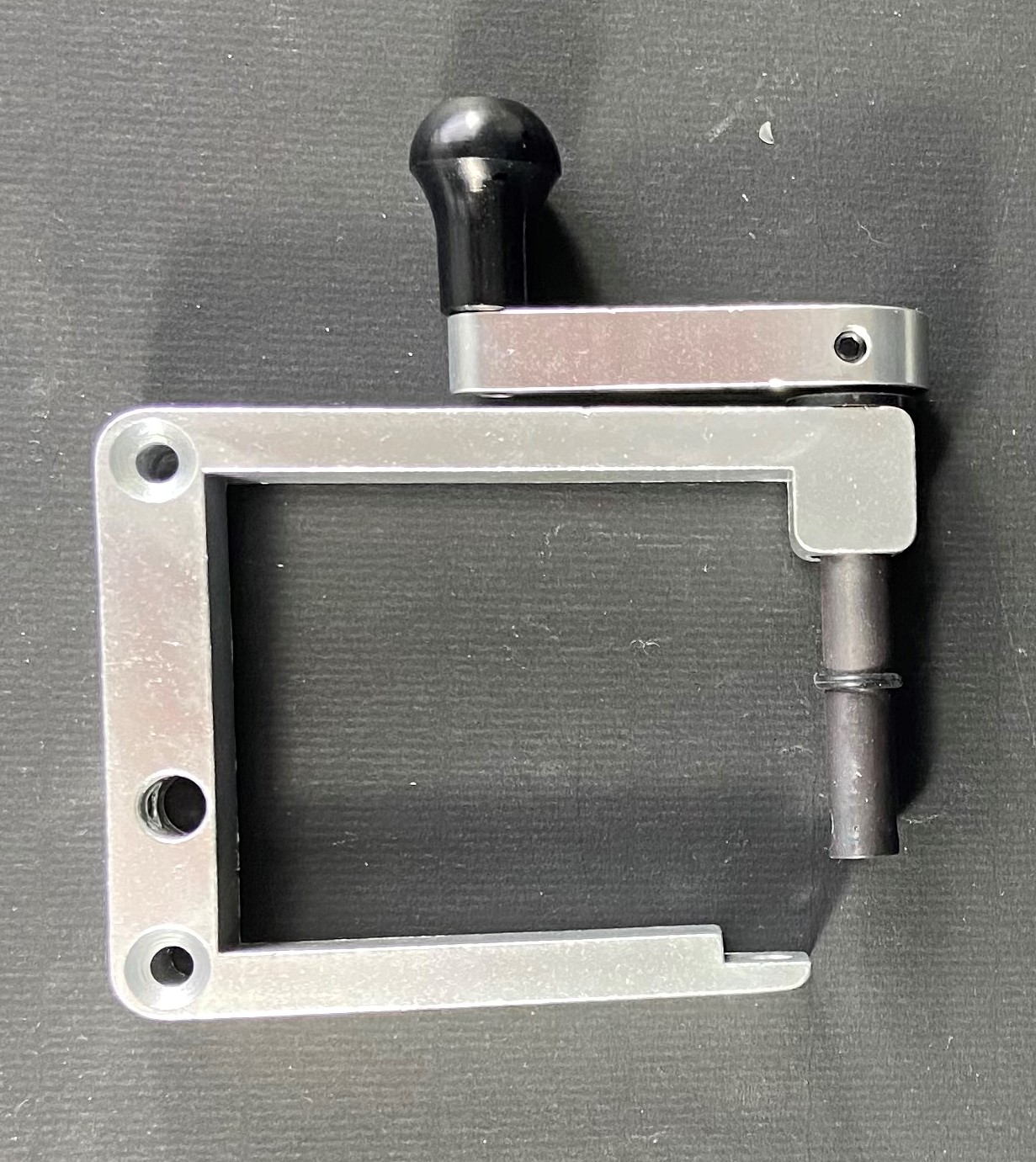

Key Update — One Bracket, Two Sizes

We redesigned the system to allow switching between small and medium Twistech heads on the same bracket.

This required mechanical changes to the rotation axis, which now supports two different hook diameters.

Product Differences (Critical to Understand)

TWISTECH V1

• Only available in small size
• Loop inner diameter: 1 mm
• Wire range: 0.40 mm to 0.60 mm

TWISTECH V2 — Small

• Requires: Bracket + Small Twistech
• Loop inner diameter: 1 mm
• Wire range: 0.40 mm to 0.60 mm
• Equivalent use to V1, but with upgraded system

TWISTECH V2 — Medium

• Requires: Bracket + Medium Twistech
• Loop inner diameter: 3 mm
• Wire range: 0.60 mm to 1.00 mm
• Can handle 1.20 mm wire, but:
  • ⚠️ Not recommended
  • ⚠️ May affect tool durability and settings

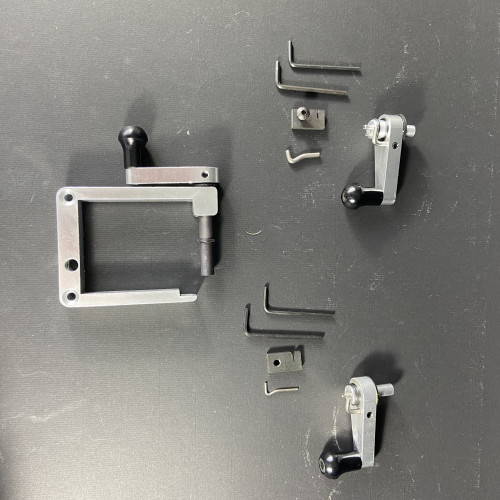

Best Option (Full Coverage)

If you want maximum flexibility:

→ Bracket + V2 Small + V2 Medium

This setup covers all common uses from 0.40 mm to 1.00 mm wire.

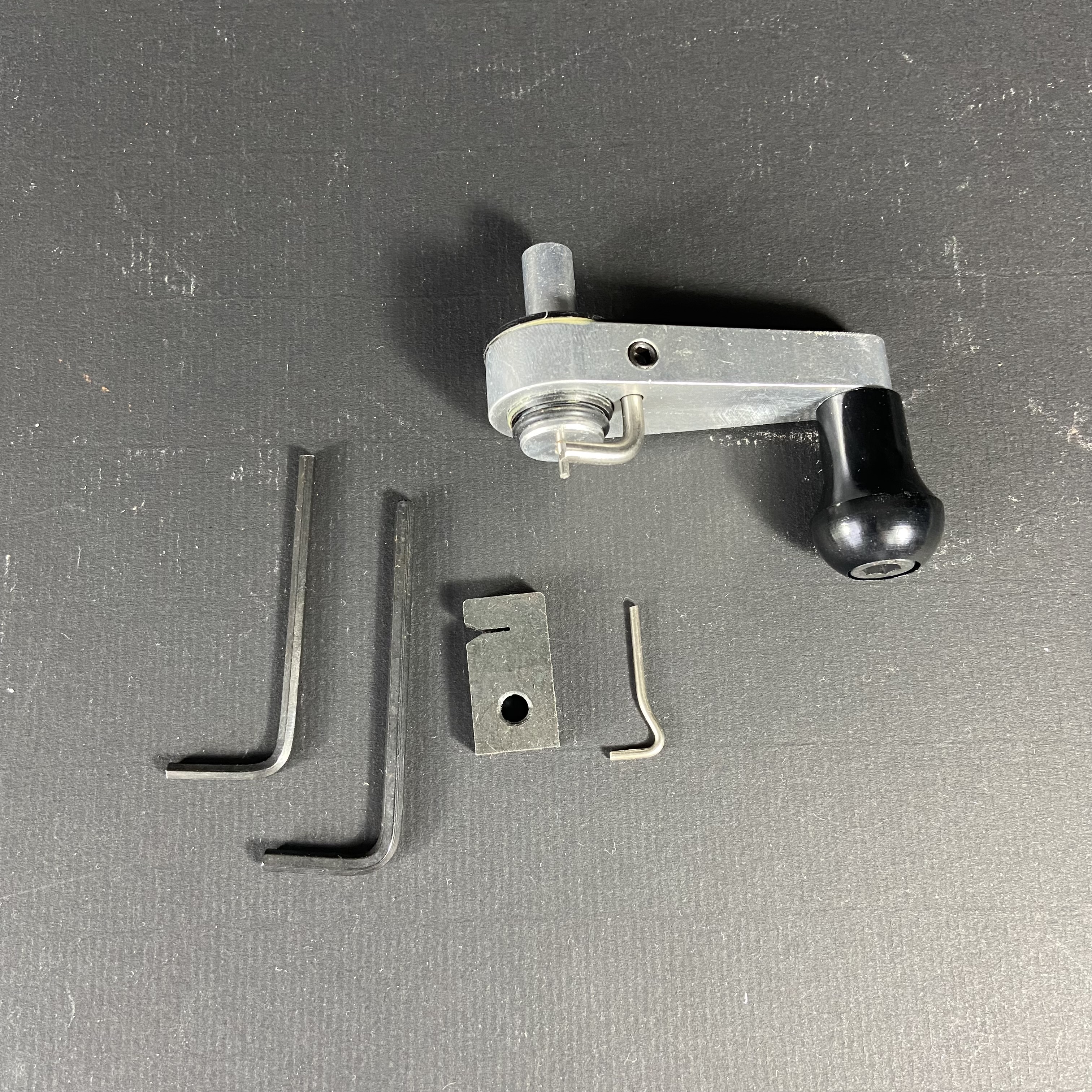

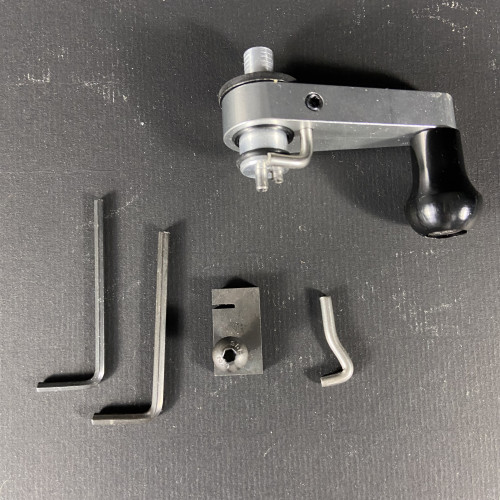

What’s Included

The TWISTECH V2 comes as a DIY kit:

• Assembly required
• Supplied with:
  • Instruction manual
  • 2 Allen keys (assembly & disassembly)

A full assembly video and usage guide are available (links already provided on your page).

Important Notes

• TWISTECH Magnum is no longer available
• V2 system is not backward compatible with V1
• Designed for precision, consistency, and durability
•

Bottom Line

• Small = precision / light setups (0.40–0.60 mm)
• Medium = power / heavier setups (0.60–1.00 mm)
• One bracket = both possibilities

This is the main upgrade of the V2 system.
